Inexpensive method of to assessing the condition of an asset such as a pipe
Fully-trained operators capable of defect detection
Detection of the following items:
Rust, scale, pitting
Visual inspection is usually the first tool to be used to assess the condition of an asset such as a pipe. The features of interest can be cracks, erosion, corrosion, debris, grinding, scouring, welding, manufacturing defects, discolouration, weld splatter, location of insertions or state of the coating.
With pipes it is not physically possible to get access to the internal surface and hence crawlers and cameras are typically used. A typical requirement is to use the visual inspection, which is quick and easy, to direct a more thorough inspection which will often be a 3-D survey.

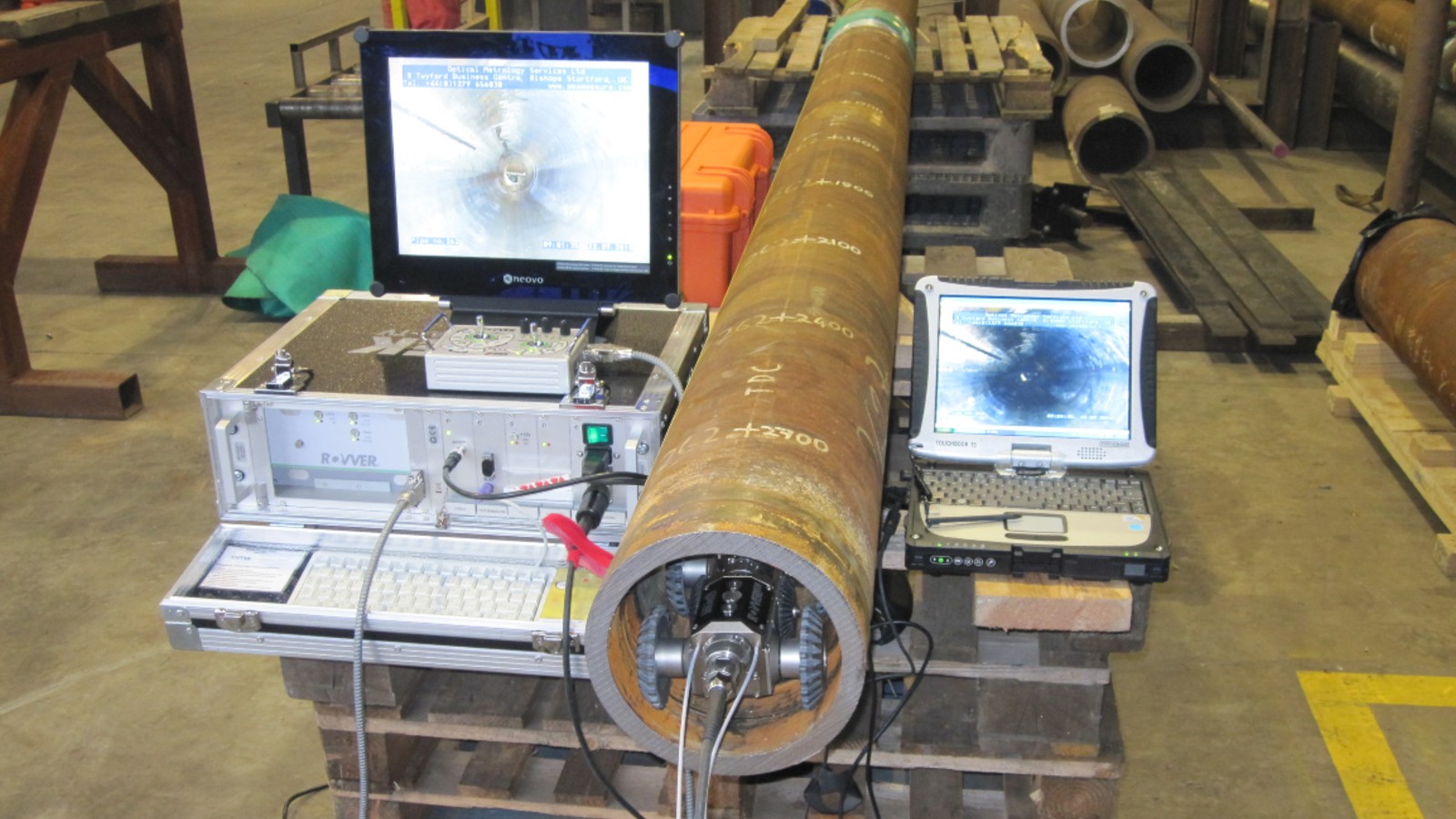

The most common solution is to put a camera with a variable zoom and focus onto a pan and tilt mount and then move this system through the pipe. Of course variable lighting is also needed and preferably the camera should be mounted centrally to allow an even magnification of the pipe surface. Other solutions can use a camera which is mounted to see the side of the pipe wall and then rotated to collect a sequence of images which can then be reviewed in much higher resolution than using a typical video camera.
Getting the camera into the right place in order to conduct the survey may require push-rods, pull wires or crawlers using tracks or wheels.
