Ready-to-go laser measurement and data solution

  • Meet specifications

  • Improve quality

  • Reduce costs

  • Fully compatible with OMS fit-up solutions (SmartFit)

  • Automated software

  • Full suite of automated results (API/DNV specifications)

“Our clients are committed to providing the highest quality pipe. Designed to work alongside existing mill systems, if necessary, this range of packages is a cost-effective and easily implemented solution that helps clients confirm pipe quality, resolve conflicts, achieve project specifications and meet growing demand.”

-Marcus Smiles, UAE Regional Head

OMS, a trusted third party expert, has released a new range of laser measurement packages specifically for our pipe mill clients. Offering excellent value for money, these packages provide pipe mills with the data they need to ensure pipe quality, optimum fit-up and end client satisfaction. With automated and manual options available, we can work with clients’ existing data and systems to provide the solution that best fits their requirements. Our team is available to provide more information or a quotation. Contact them on info@omsmeasure.com.

Service description

Range of laser measurement packages ideal for pipe mill clients. Pipe mills are provided with the data they need, including radial data, to ensure pipe quality, optimum fit-up and end client satisfaction. Various automated and manual options are available to suit client need - alongside this, we can work with clients’ existing data and systems to provide their ideal solution. Fully compatible with our award-winning SmartFit system for optimum pipe fit-up, these packages provide our clients with traceable, verified data in the most suitable format to reduce handling, improve pipe quality and meet specifications. Data supplied can resolve potential issues, provide an insurance check and help avoid any rejected pipe.

Service details

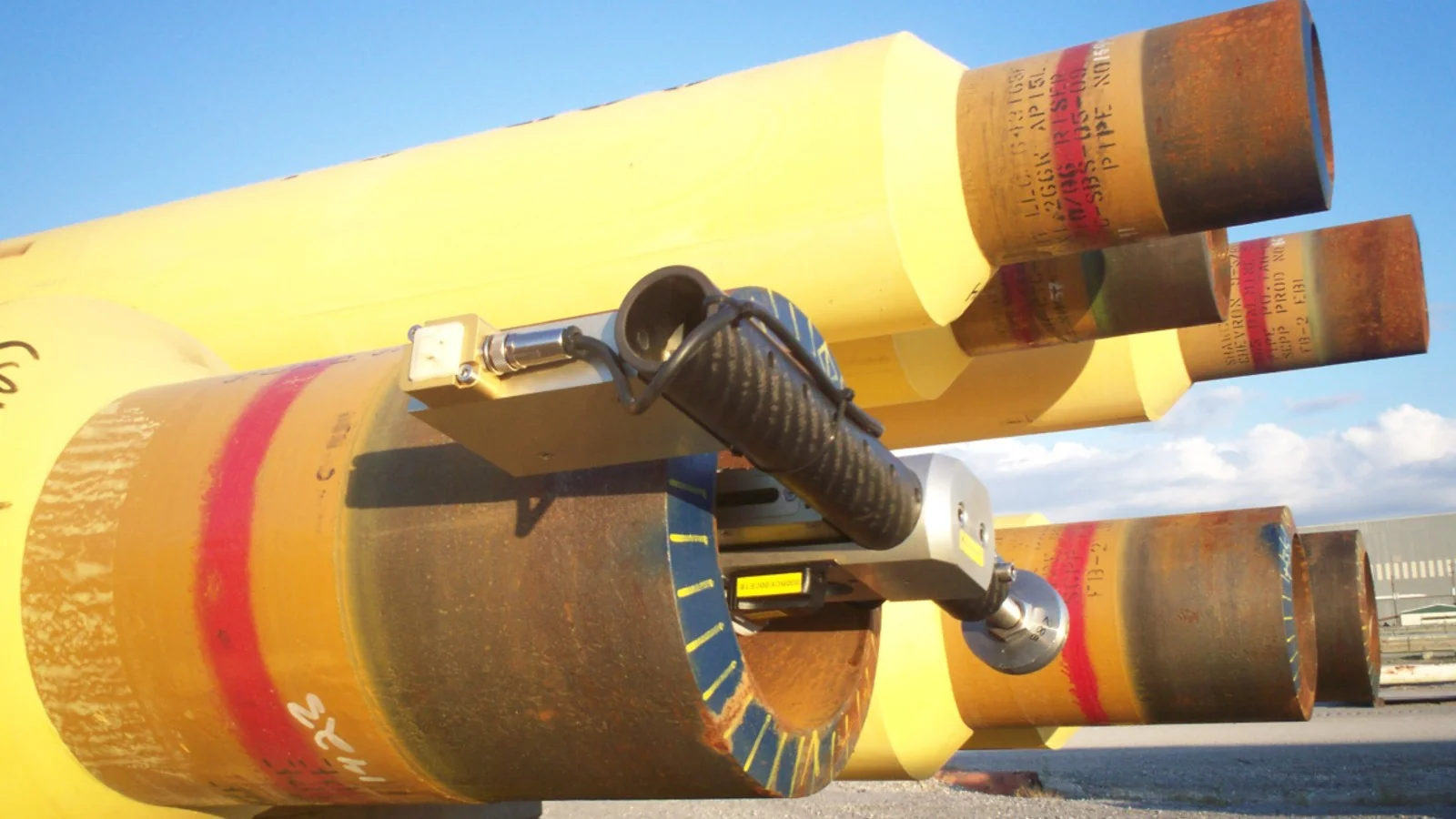

Pipe mill packages provide comprehensive data on pipe size and shape, measuring dimensions including inner and outer diameter, wall thickness, out-of-roundness, ovality and longitudinal wall thickness with our award-winning Autotool. The service identifies the widest possible range of issues that could cause pipe mills’ end client to reject pipe or problems with fit-up further down the line. Data can either be acquired manually and transferred to clients in raw format, or automatically through a seamless process, then transferred via FTP or other means to client servers or databases. Further customisation is available - speak to our team for more information.

  • Portable laser pipe-end measurement solution that can be used in multiple locations to verify pipe size/shape and identify a wide range of potential issues

  • Low profile laser sensors mean that pipes can be measured in multiple locations, including in the stack, from as close as 40mm apart, and in the post-coating storage area

  • Can work with existing mill data and systems

  • Helps to resolve conflicts with end clients in situations where callipers have been used and have produced inaccurate measurements

  • Tried, tested, reliable and portable system used all over the world for more than 20 years

  • Standard, automated and bespoke packages available

  • Standard package includes manual acquisition and transfer of raw data, that can be shared with third parties and/or integrated with mill systems

  • Automated package is a seamless process whereby data is acquired automatically then transferred via FTP or other means to client server and/or database

  • Two to four Autotools used by two operators to measure pipe at each end simultaneously

  • Measure a wide variety of dimensions including ID, OT, WT, ovality and longitudinal wall thickness up to c. 200mm from pipe end

  • Cost-effective, easy-to-implement solution

  • Identify all shape and deviation issues that could cause problems

  • Reduce pipe handling and associated costs

  • Traceable, verifiable data provided by recognised 3rd party experts

  • Resolve conflicts with end clients

  • Meet project specifications

  • Carry out insurance checks at pipe yards

  • Improve processes and efficiency

Benefits

  • Rapid, automated, twelve second scan with award-winning Autotool

  • Instant API pass/fail

  • Measure in the stack from as close as 40mm, or in the post-coating storage area

  • Choice of manual or automated data acquisition

  • Integration with existing client systems

  • Radial data available

  • Range of date presentation options to suit client need

  • Cost-effective and easy-to-implement process

  • Reliable, robust, easily portable, tried and tested technology

Features

Projects

OMS offers agile solutions to client problems. Our portable technology and experienced operators mean we deploy rapidly and arrive on-site to solve problems as soon as possible. Contact us to find out how we can help
